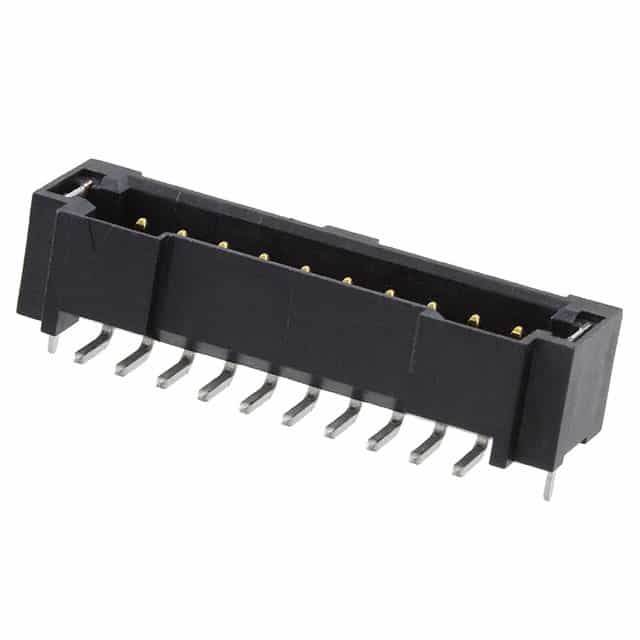

1-796698-6
| Part Number | 1-796698-6 |
|---|---|
| Description | TERM BLOCK HDR 16POS 90DEG 5MM |
| Category | Connectors |
| Manufacturer | Agastat Relays / TE Connectivity |
| In Stock | 12049 |
| Datasheet | Download |
Description
| Manufacturer | Agastat Relays / TE Connectivity |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – UL | 300V |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Termination Style | Solder |
| Series | Buchanan |
| Positions Per Level | 16 |
| Pitch | 0.197″ (5.00mm) |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 16 |
| Number of Levels | 1 |
| Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 |
| Insulation Height | 0.329″ (8.36mm) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | 90°, Right Angle |
| Features | Side Stacking |
| Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197″ (5.00mm) 90°, Right Angle Through Hole |
| Current – UL | 15A |
| Contact Tail Length | 0.138″ (3.50mm) |
| Contact Mating Finish | Tin |
| Contact Material | Copper Alloy |
| Color | Blue |
