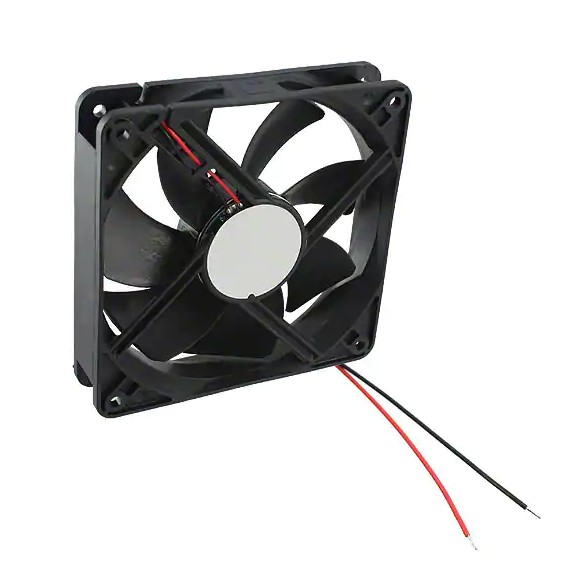

3612KL-05W-B49-B00

Part Number	3612KL-05W-B49-B00
Description	FAN AXIAL 92X32MM 24VDC WIRE
Category	Fans
Manufacturer	NMB Technologies Corp.
In Stock	19229
Datasheet	Download

Category: Fans

Description

Description

Manufacturer	NMB Technologies Corp.
Lead / RoHS Status	Lead free / RoHS Compliant
Width	32.00mm
Weight	0.507 lb (229.97g)
Voltage Range	15 ~ 27.6VDC
Voltage – Rated	24VDC
Termination	3 Wire Leads
Static Pressure	0.245 in H2O (61.0 Pa)
Size / Dimension	Square – 92mm L x 92mm H
Series	3612KL
RPM	3200 RPM
Power (Watts)	3.84W
Other Names	3612KL05WB49B00 3612KL05WB49B00 -ND 3612KL05WB49B00-ND
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Noise	38.0 dB
Material – Frame	Plastic
Material – Blade	Plastic
Lifetime @ Temp.	100000 Hrs @ 25°C
Features	Locked Rotor Sensor
Fan Type	Tubeaxial
Current Rating	0.160A
Bearing Type	Ball
Approvals	CE, CSA, UL, VDE
Air Flow	58.6 CFM (1.64m³/min)
