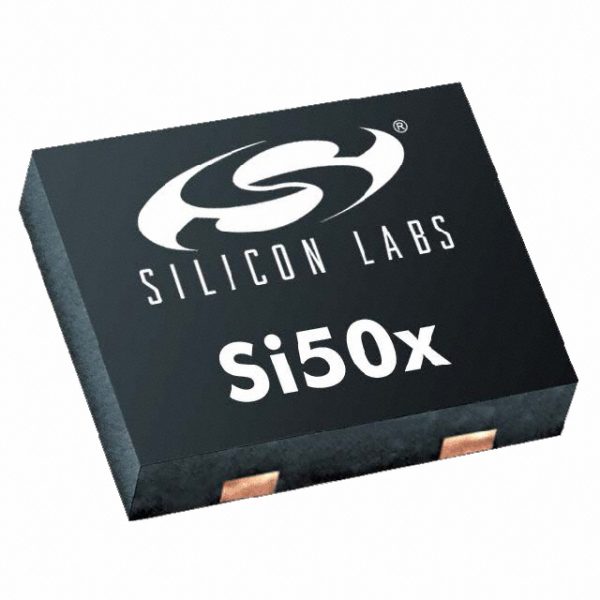

504CBA-ACAG
| Part Number | 504CBA-ACAG |
|---|---|
| Description | OSC PROG LVCMOS 2.5V EN/DS SMD |
| Category | Crystals |
| Manufacturer | Energy Micro (Silicon Labs) |
| In Stock | 12514 |
| Datasheet | Download |
Description
| Manufacturer | Energy Micro (Silicon Labs) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 2.5V |
| Type | CMEMS® |
| Size / Dimension | 0.126″ L x 0.098″ W (3.20mm x 2.50mm) |
| Series | CMEMS® Si504 |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Packaging | Tray |
| Package / Case | 4-SMD, No Lead |
| Output | LVCMOS |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Height | 0.035″ (0.90mm) |
| Function | Enable/Disable |
| Frequency Stability (Total) | ±30ppm |
| Detailed Description | CMEMS® LVCMOS 32kHz ~ 80MHz Programmable Oscillator 2.5V Enable/Disable 4-SMD, No Lead |
| Current – Supply (Max) | 6.5mA |
| Current – Supply (Disable) (Max) | 1µA |
| Base Resonator | MEMS |
| Available Frequency Range | 32kHz ~ 80MHz |
