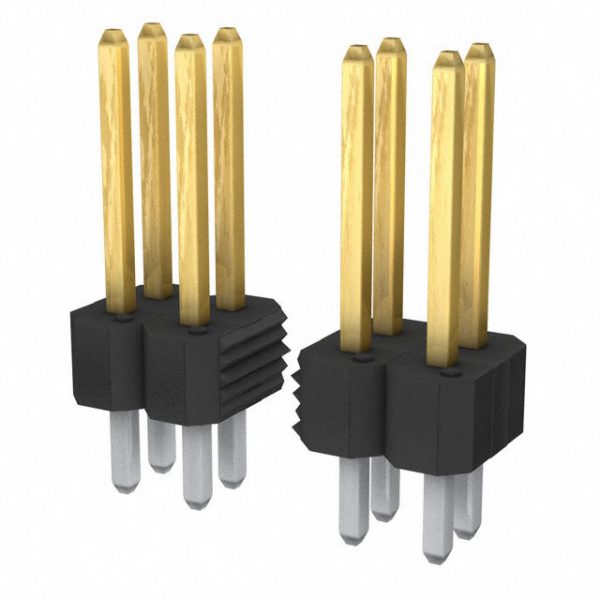

54102-G3007B03LF
| Part Number | 54102-G3007B03LF |
|---|---|
| Description | HEADER BERGSTIK STR |
| Category | Connectors |
| Manufacturer | Amphenol FCI |
| In Stock | 17282 |
| Datasheet | Download |
Description
| Manufacturer | Amphenol FCI |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | BERGSTIK® |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.538″ (13.67mm) |
| Number of Rows | 2 |
| Number of Positions Loaded | 13 |
| Number of Positions | 14 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Height | 0.100″ (2.54mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 14 position 0.100″ (2.54mm) |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Post | 0.120″ (3.05mm) |
| Contact Length – Mating | 0.318″ (8.08mm) |
| Contact Finish Thickness – Post | 100.0µin (2.54µm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold or Gold, GXT™ |
| Connector Type | Header |
