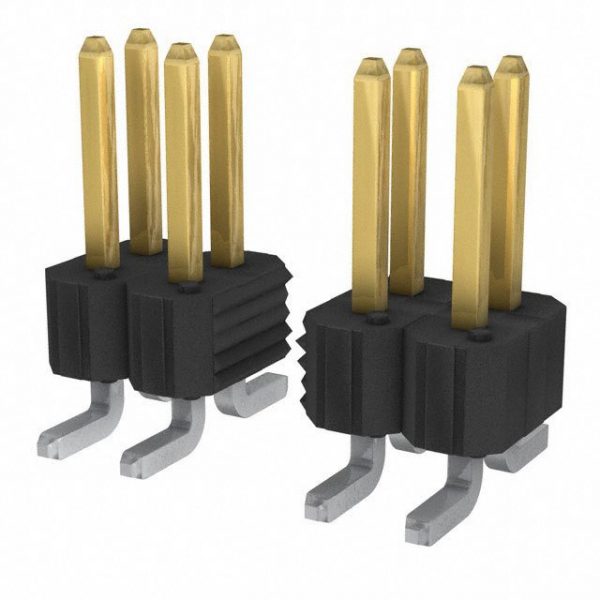

54202-G08-06
| Part Number | 54202-G08-06 |
|---|---|
| Description | CONN SMT 30 GOLD |
| Category | Connectors |
| Manufacturer | Amphenol FCI |
| In Stock | 5289 |
| Datasheet | Download |
Description
| Manufacturer | Amphenol FCI |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Series | BERGSTIK® |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | 54202-G8-6 54202-G8-6-ND |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 12 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Height | 0.100″ (2.54mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 12 position 0.100″ (2.54mm) |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Mating | Gold or Gold, GXT™ |
| Connector Type | Header |
