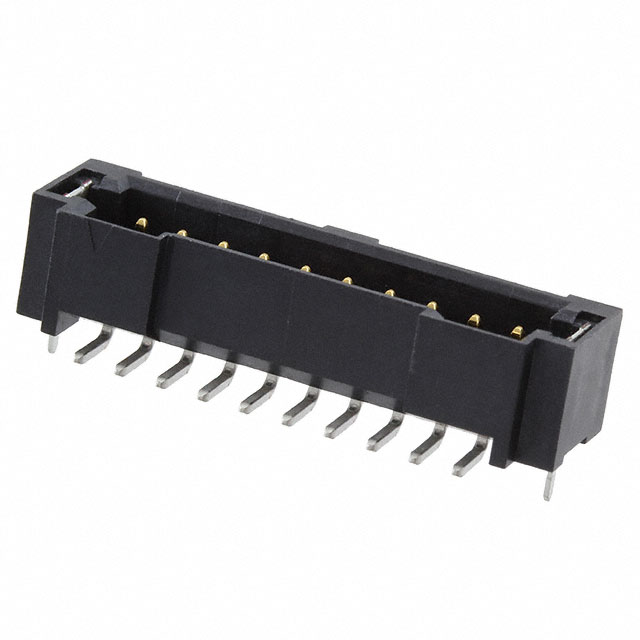

57102-G06-03
| Part Number | 57102-G06-03 |
|---|---|
| Description | MINITEK UNSHR HDR |
| Category | Connectors |
| Manufacturer | Amphenol FCI |
| In Stock | 15415 |
| Datasheet | Download |
Description
| Manufacturer | Amphenol FCI |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage Rating | 200V (AC/DC) |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Series | Minitek® |
| Row Spacing – Mating | 0.079″ (2.00mm) |
| Pitch – Mating | 0.079″ (2.00mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.315″ (8.00mm) |
| Other Names | 57102-G6-3 57102-G6-3-ND |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 6 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.059″ (1.50mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 6 position 0.079″ (2.00mm) |
| Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.098″ (2.50mm) |
| Contact Length – Mating | 0.157″ (4.00mm) |
| Contact Finish Thickness – Post | 78.7µin (2.00µm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold, GXT™ |
| Connector Type | Header |
