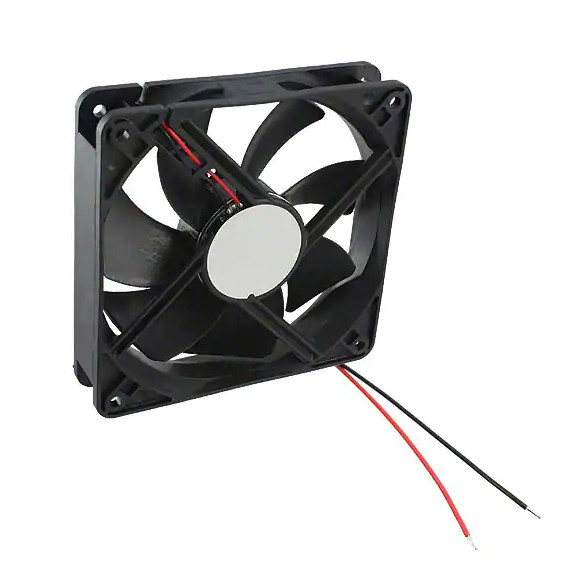

9WP0848S401
Part Number | 9WP0848S401 |
---|---|
Description | DC AXIAL FAN 80X80X25MM TACH |
Category | Fans |
Manufacturer | Sanyo Denki |
In Stock | 15346 |
Datasheet | Download |
Description
Manufacturer | Sanyo Denki |
---|---|
Width | 25.00mm |
Voltage Range | 40.8 ~ 55.2VDC |
Voltage – Rated | 48VDC |
Termination | 3 Wire Leads |
Static Pressure | 0.193 in H2O (48.1 Pa) |
Size / Dimension | Square – 80mm L x 80mm H |
Series | San Ace 80W |
RPM | 3400 RPM |
Power (Watts) | 2.88W |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Noise | 34.0 dB(A) |
Material – Frame | Plastic |
Material – Blade | Plastic |
Lifetime @ Temp. | 40000 Hrs @ 60°C |
Ingress Protection | IP68 – Dust Tight, Waterproof |
Features | Speed Sensor (Tach) |
Fan Type | Tubeaxial |
Current Rating | 0.060A |
Bearing Type | Ball |
Approvals | CSA, TUV, UL |
Air Flow | 42.4 CFM (1.19m³/min) |
