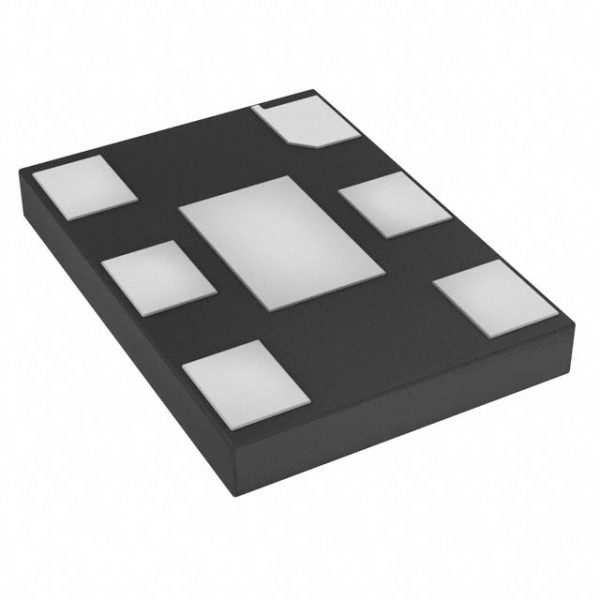

DSC1123AE1-156.2500T

Part Number	DSC1123AE1-156.2500T
Description	OSC MEMS 156.25MHZ LVDS SMD
Category	Crystals
Manufacturer	Micrel / Microchip Technology
In Stock	12751
Datasheet	Download

Part Number

Description

Manufacturer	Micrel / Microchip Technology
Lead / RoHS Status	Lead free / RoHS Compliant
Voltage – Supply	2.25 V ~ 3.6 V
Type	XO (Standard)
Size / Dimension	0.276″ L x 0.197″ W (7.00mm x 5.00mm)
Series	DSC1123
Ratings	AEC-Q100
Packaging	Tape & Reel (TR)
Package / Case	6-SMD, No Lead Exposed Pad
Output	LVDS
Operating Temperature	-20°C ~ 70°C
Mounting Type	Surface Mount
Height – Seated (Max)	0.035″ (0.90mm)
Function	Enable/Disable
Frequency Stability	±50ppm
Frequency	156.25MHz
Detailed Description	156.25MHz XO (Standard) LVDS Oscillator 2.25 V ~ 3.6 V Enable/Disable 6-SMD, No Lead Exposed Pad
Current – Supply (Max)	32mA
Current – Supply (Disable) (Max)	22mA
Base Resonator	MEMS
