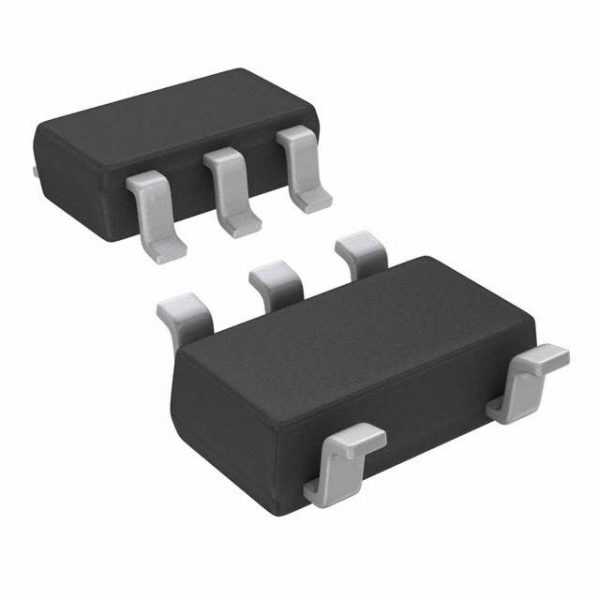

FPF2500
| Part Number | FPF2500 |
|---|---|
| Description | IC LOAD SWITCH ADJ CURR SOT23-5 |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 7504 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | Not Required |
| Voltage – Load | 4.5 V ~ 20 V |
| Switch Type | General Purpose |
| Supplier Device Package | SOT-23-5 |
| Series | IntelliMAX |
| Rds On (Typ) | 230 mOhm |
| Ratio – Input:Output | 1:01 |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | N-Channel |
| Output Configuration | High Side |
| Other Names | FPF2500TR |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Interface | On/Off |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Current – Output (Max) | 2A |
| Base Part Number | FPF2500 |
