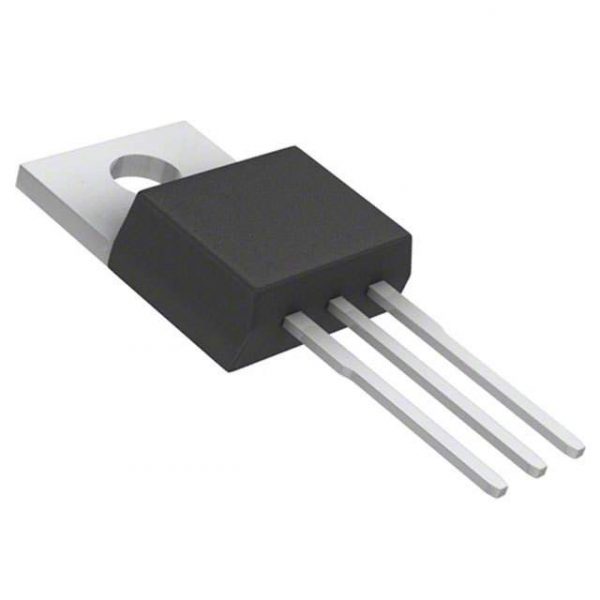

HUF75637P3
| Part Number | HUF75637P3 |
|---|---|
| Description | MOSFET N-CH 100V 44A TO-220AB |
| Category | Discrete Semiconductor Products |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 12776 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220AB |
| Series | UltraFET |
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 44A, 10V |
| Power Dissipation (Max) | 155W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 1700pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 108nC @ 20V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 44A (Tc) 155W (Tc) Through Hole TO-220AB |
| Current – Drain (Id) @ 25°C | 44A (Tc) |
