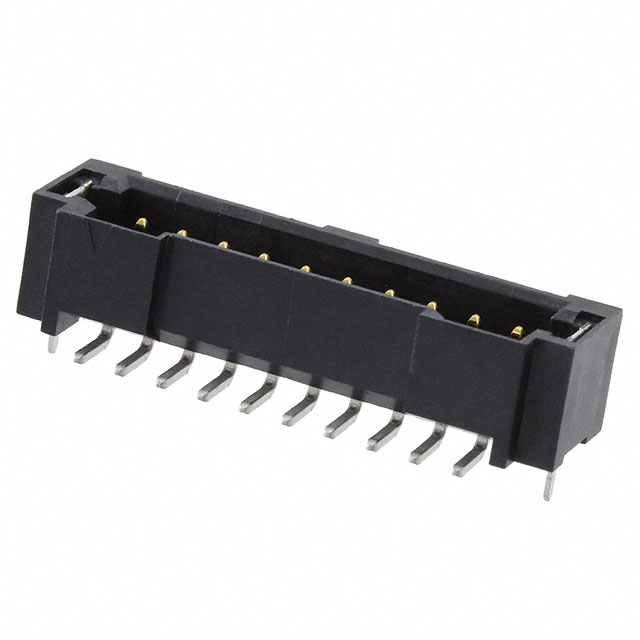

IL-WX-26P-VF-BE
| Part Number | IL-WX-26P-VF-BE |
|---|---|
| Description | CONN 26POS 0.8MM SMT |
| Category | Connectors |
| Manufacturer | JAE Electronics, Inc. |
| In Stock | 11881 |
| Datasheet | Download |
Description
| Manufacturer | JAE Electronics, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Shrouded – 4 Wall |
| Series | IL-WX |
| Row Spacing – Mating | 0.059″ (1.50mm) |
| Pitch – Mating | 0.031″ (0.80mm) |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 26 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.144″ (3.66mm) |
| Insulation Color | Black |
| Features | Solder Retention |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 26 position 0.031″ (0.80mm) |
| Current Rating | 0.5A per Contact |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Brass |
| Contact Length – Mating | 0.071″ (1.80mm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Tin |
| Connector Type | Header |
