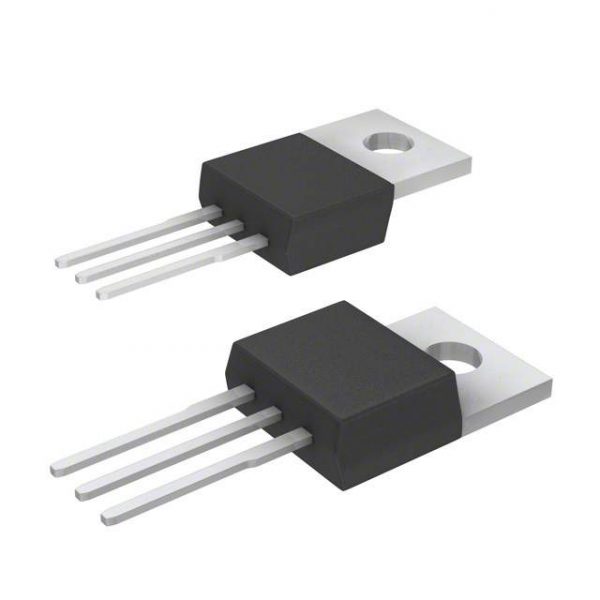

IXGP16N60C2D1
Part Number | IXGP16N60C2D1 |
---|---|
Description | IGBT 600V 40A 150W TO220 |
Category | Discrete Semiconductor Products |
Manufacturer | IXYS Corporation |
In Stock | 19100 |
Datasheet | Download |
Description
Manufacturer | IXYS Corporation |
---|---|
Lead / RoHS Status | Lead free / RoHS Compliant |
Voltage – Collector Emitter | 600V |
Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 12A |
Test Condition | 400V, 12A, 22 Ohm, 15V |
Td (on/off) @ 25°C | 16ns/75ns |
Switching Energy | 160µJ (on), 90µJ (off) |
Supplier Device Package | TO-220AB |
Series | HiPerFAST |
Reverse Recovery Time (trr) | 30ns |
Power – Max | 150W |
Packaging | Tube |
Package / Case | TO-220-3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Through Hole |
Moisture Sensitivity Level | 1 (Unlimited) |
Input Type | Standard |
IGBT Type | PT |
Gate Charge | 25nC |
Detailed Description | IGBT PT 600V 40A 150W Through Hole TO-220AB |
Current – Collector Pulsed | 100A |
Current – Collector (Ic) (Max) | 40A |
Base Part Number | IXG*16N60 |
