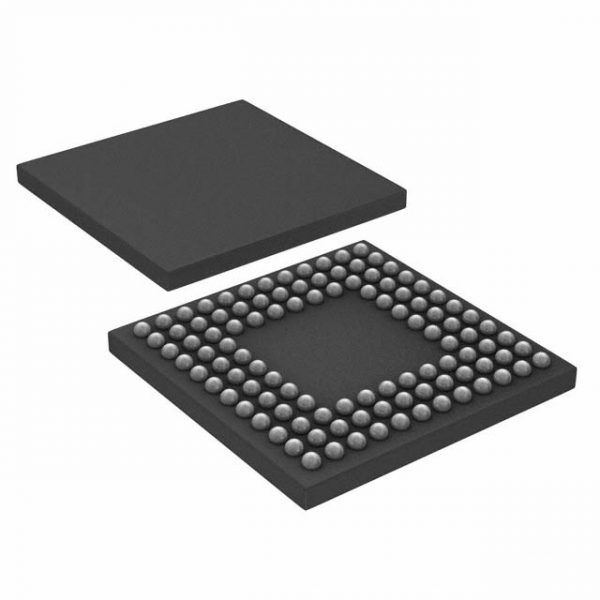

LM3S9D90-IBZ80-A1
| Part Number | LM3S9D90-IBZ80-A1 |
|---|---|
| Description | IC MCU 32BIT 512KB FLASH 108BGA |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 11839 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 1.235 V ~ 1.365 V |
| Supplier Device Package | 108-BGA (10×10) |
| Speed | 80MHz |
| Series | Stellaris® ARM® Cortex®-M3S 9000 |
| RAM Size | 96K x 8 |
| Program Memory Type | FLASH |
| Program Memory Size | 512KB (512K x 8) |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Packaging | Tray |
| Package / Case | 108-LFBGA |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of I/O | 60 |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Detailed Description | ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 9000 Microcontroller IC 32-Bit 80MHz 512KB (512K x 8) FLASH 108-BGA (10×10) |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit |
| Core Processor | ARM® Cortex®-M3 |
| Connectivity | CANbus, Ethernet, I²C, IrDA, LINbus, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Base Part Number | LM3S9D90 |
