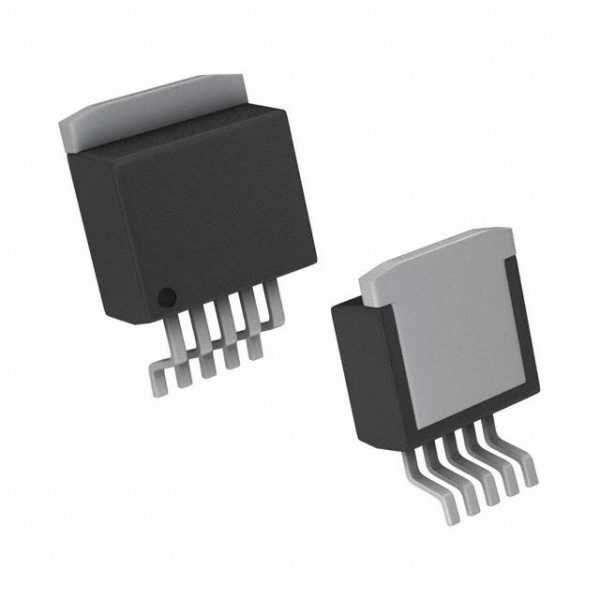

LP3856ESX-3.3
| Part Number | LP3856ESX-3.3 |
|---|---|
| Description | IC REG LIN 3.3V 3A DDPAK/TO263-5 |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 15161 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage Dropout (Max) | 0.6V @ 3A |
| Voltage – Output (Min/Fixed) | 3.3V |
| Voltage – Input (Max) | 7V |
| Supplier Device Package | DDPAK/TO-263-5 |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| PSRR | 73dB ~ 57dB (120Hz) |
| Output Type | Fixed |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C |
| Number of Regulators | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 3A DDPAK/TO-263-5 |
| Current – Supply (Max) | 10mA |
| Current – Quiescent (Iq) | 4mA |
| Current – Output | 3A |
| Control Features | Enable |
| Base Part Number | LP3856 |
