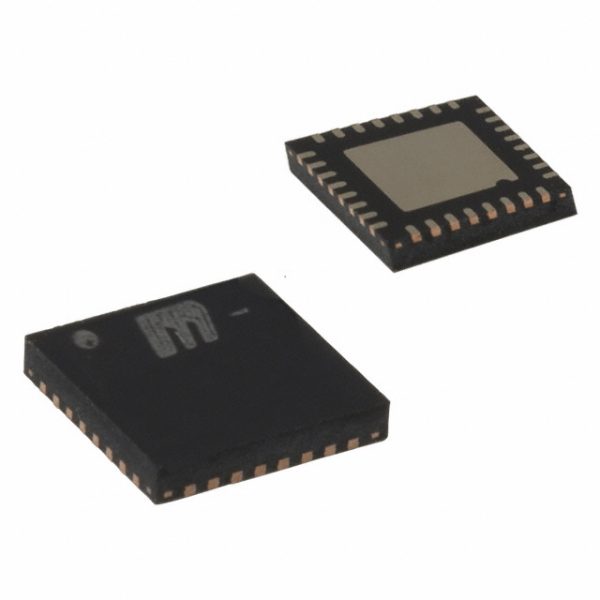

MIC2156YML-TR
| Part Number | MIC2156YML-TR |
|---|---|
| Description | IC REG CTRLR BUCK 32MLF |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Micrel / Microchip Technology |
| In Stock | 5950 |
| Datasheet | Download |
Description
| Manufacturer | Micrel / Microchip Technology |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 4.5 V ~ 14.5 V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 32-MLF® (5×5) |
| Packaging | Cut Tape (CT) |
| Package / Case | 32-VFQFN Exposed Pad, 32-MLF® |
| Output Type | Transistor Driver |
| Output Phases | 2 |
| Output Configuration | Positive |
| Other Names | 576-3528-1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 2 |
| Moisture Sensitivity Level | 2 (1 Year) |
| Function | Step-Down |
| Frequency – Switching | 300kHz |
| Duty Cycle (Max) | 80% |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-MLF® (5×5) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Clock Sync | Yes |
| Base Part Number | MIC2156 |
