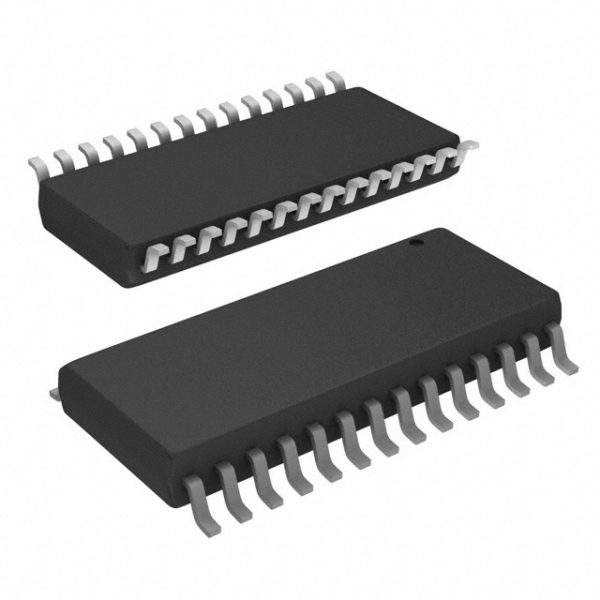

PIC16F876AT-E/SO
| Part Number | PIC16F876AT-E/SO |
|---|---|
| Description | IC MCU 8BIT 14KB FLASH 28SOIC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Micrel / Microchip Technology |
| In Stock | 19721 |
| Datasheet | Download |
Description
| Manufacturer | Micrel / Microchip Technology |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 4 V ~ 5.5 V |
| Supplier Device Package | 28-SOIC |
| Speed | 20MHz |
| Series | PIC® 16F |
| RAM Size | 368 x 8 |
| Program Memory Type | FLASH |
| Program Memory Size | 14KB (8K x 14) |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295″, 7.50mm Width) |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of I/O | 22 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| EEPROM Size | 256 x 8 |
| Detailed Description | PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 14KB (8K x 14) FLASH 28-SOIC |
| Data Converters | A/D 5x10b |
| Core Size | 8-Bit |
| Core Processor | PIC |
| Connectivity | I²C, SPI, UART/USART |
| Base Part Number | PIC16F876A |
