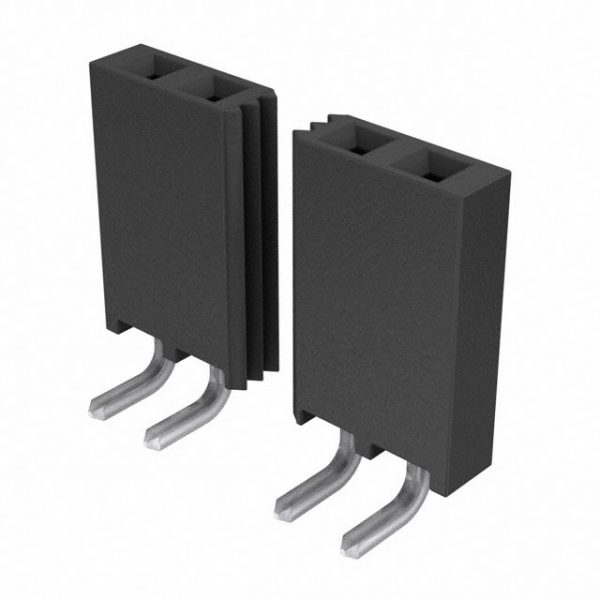

SSQ-114-02-S-S-RA
| Part Number | SSQ-114-02-S-S-RA |
|---|---|
| Description | CONN RCPT .100″ 14POS R/A SGL AU |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 17470 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 550VAC |
| Termination | Solder |
| Style | Board to Board or Cable |
| Series | SSQ |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | SAM1192-14 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 14 |
| Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.095″ (2.41mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | 14 Position Receptacle Connector 0.100″ (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 6.3A per Contact |
| Contact Type | Forked |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Post | 0.100″ (2.54mm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Receptacle |
